In the December 2023 issue, the figure on page 5 is not a Koch chart, but rather a chart for computing pressure altitude.
A Koch chart normally has a pressure altitude scale on the right and temperature on the left. In the center are scales for correcting takeoff distance and climb rate relative to sea level values.
While these factors are monotonically related to pressure altitude, the reason to use the Koch chart is when the values available in provided tables don’t cover the pressure altitude one is working with.
I have discussed with many experienced CFIs who don’t know the Koch chart. It is a very useful but less well-known tool.
—Peter N. Steinmetz, Tempe, AZ

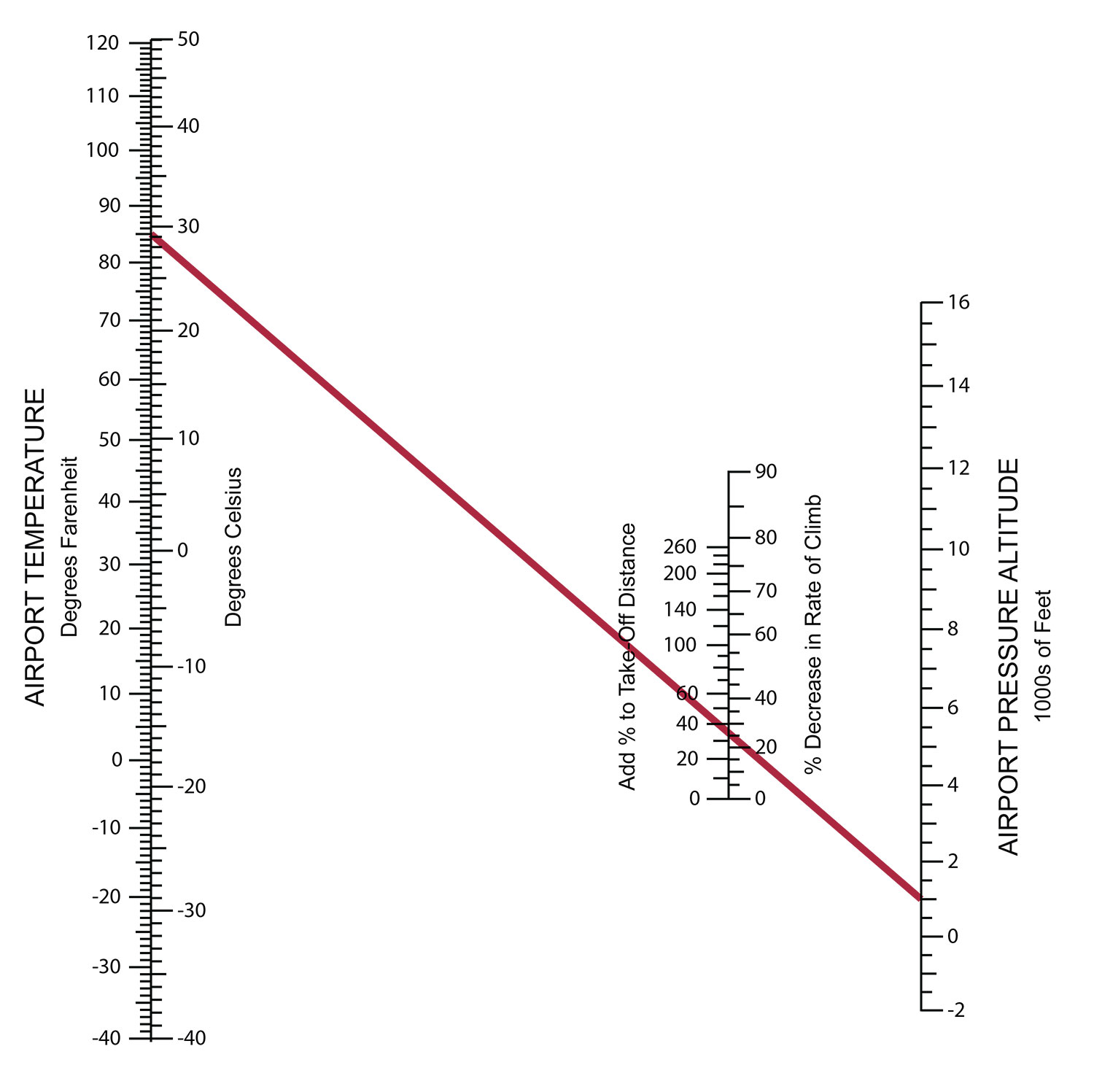

You’re right, of course. We have no idea how we did that. A “real” Koch chart is reproduced at upper right. Thanks!
Circling And Missing
I am an avid reader and supporter of Aviation Safety. Your publications and approach to fostering safer pilots is much appreciated. Bravo for your efforts!
Top portion of the third column of page 17 says this: “So, when circling, we always want to return to the MAP and then turn onto the prescribed course or heading before initiating a climb.” This statement is NOT correct. This could lead a pilot to attempt to return to the missed approach point without navigation capability to the MAP, sometimes from the complete opposite direction with no guidance on which way to turn to reestablish themselves on the missed approach segment. Bad advice all the way.
Your insert on page 17 that references the Airman’s Information Manual IS correct. “To become established on the prescribed missed approach course, the pilot should make an initial climbing turn toward the landing runway and continue the turn until established on the missed approach course. If the aircraft initiates a missed approach at a point other than the MAP…from below MDA or DA, or on a circling approach, obstacle clearance is not necessarily provided by following the published missed approach procedure.”
Thank you for reviewing and correcting this info.
—Gary Garavaglia
You’re right, also, Gary. Thankfully, we didn’t make the same mistake in January’s article, by Matt Johnson, on this very topic. Thanks!
Journey Of Hope
The article “Journey of Hope” was of special interest to me as I am advancing in age. First, let me note that there is no age restriction to the issuing of a First Class Medical.
I have been flying since 1959, and have been an FAA Senior Aviation Medical Examiner since the mid 1970s. And have ATP, COM, CFII, SEL and MEL ratings. In addition to aviation medicine, I do some family medicine to keep my skills up.
I got my ATP when I was 75 years old, just because it was another goal. While I still fly my Cessna 421C, I decided when I turned 80, that, even though it’s not required, I would have a safety pilot with me. The thought of leaving my wife in a plane with me incapacitated made me very uncomfortable.
I have found flying, whether it was in the back seat of an F-4 Wild Weasel or a Cessna 140, adds to my quality of life. The camaraderie among pilots I take care of and fly with keeps me young, And I always fly safe.
—James E. Palen, M.D., Senior AME, via email
Send your thoughts, comments or questions to [email protected]
